CryoFiG
CryoFiG Fabric
Outer protection and reinforcement fabric for cryogenic material packages.
Typical applicationsCryogenic storage / 4K magnets / Vacuum piping / Rocket thermal control / Satellite MLI / Research cryogenics / Superconducting cable / Deep cryogenic missions
Engineering datasheet
Selection data and declared limitations
Technical sales will review the requested product and application conditions, then reply by email with document availability and next steps.

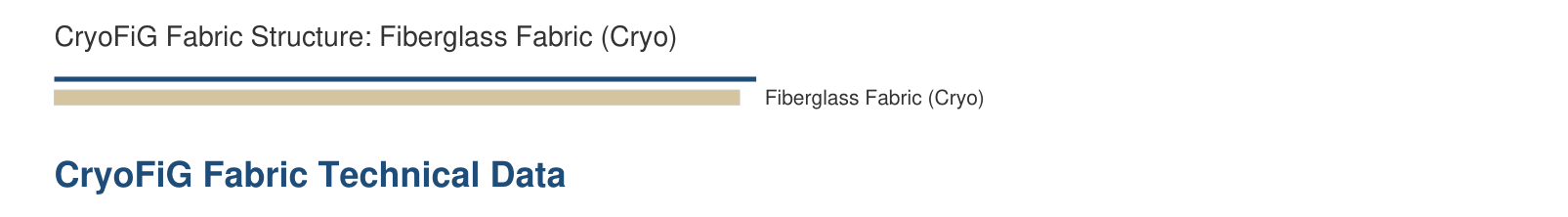

- Structure
- Cryogenic fiberglass fabric
- Temperature range
- 4 K-533 K
- Total thickness
- 0.10 mm
- Area weight
- 110 g/m²
- Roll width
- 1050 mm
- Roll length
- 250 m
- Recommended vacuum condition
- Used as a protection or reinforcement layer within a project-defined vacuum assembly. The fabric does not establish the vacuum condition; fiber shedding, cleaning, outgassing, and placement require project review.
- Thermal performance
- No standalone apparent-conductivity or heat-flux value is published. Added fabric thickness and compression can change the installed MLI performance, so the full stack must be evaluated.
- Width and roll options
- Roll and custom-cut dimensions are confirmed by RFQ. Specify width, length, edge treatment, profile geometry, tolerance, and packaging requirement.
- Layer configuration options
- Normally used as a localized or outer protective ply. Number of plies and placement depend on abrasion, handling, dielectric, and installation requirements.
- Processing options
- Slitting, straight cutting, and profile cutting
- Sewing or integration with insulation blankets by agreement
- Supplied as part of a project material kit
- Typical applications
- LNG / LN2 / LOX Storage & TransportLiquid Helium / MRI / Superconducting MagnetsVacuum Jacketed Piping & Cold BoxAerospace & Rocket Thermal ControlSatellite MLI Blankets & External Thermal ProtectionFusion / Accelerator / Research CryogenicsSuperconducting Cable & Power SystemsSpace & Deep Cryogenic Missions
- Notes and limitations
- Not a pressure boundary, structural laminate, certified electrical insulation, or fire barrier unless separately qualified.
- Avoid compressing the underlying MLI or creating debris in cleanliness-sensitive systems.
- Suitability for oxygen, radiation, or flight service requires project-specific review.
- Download PDF
- CryoMLI Series Product Brochure
Product technical table
CryoFiG Fabric technical data
The table below is published as product-level reference data. Final use still depends on application geometry, vacuum condition, installation density, cleanliness, and customer validation.
| Item | Unit | Technical specification |
|---|---|---|
| Structure | - | Fiberglass Fabric (Cryo) |
| Total Thickness | mm | 0.1 ±0.05 |
| Weight | g/m² | 110 ±10 |
| Length | m | 250 |
| Width | mm | 1050 |
| Application Temperature Range | - | 4K(-269°C) - 533K(260°C) |
